Flask Datta Able ENH

Dashboard built by AppSeed in Flask on top of Datta Able design - Manual Coded Version.

This product is manualy coded on top of the generated version Datta Able PRO

Version: 1.0.13 - release date 2022-07-20

  • Bootstrap 5 Design, Light/Dark Mode, 190 pages, Multiple Layouts
  • DB Tools: SQLAlchemy ORM, Flask-Migrate (schema migrations)
  • Persistence: SQLite, MySql
  • Authentication: Session Based, Social Login via Github & Twitter
  • Users Management
    • Extended user profile
    • Complete Users management (for Admins)
  • API via Flask-RestX
  • Deployment: Docker, Flask-Minify (page compression)

Links

✨ Environment​

To use the starter, Python3 should be installed properly in the workstation. If you are not sure if Python is installed, please open a terminal and type python --version. Here is the full list with dependencies and tools required to build the app:

  • Python3 - the programming language used to code the app
  • GIT - used to clone the source code from the Github repository
  • Basic development tools (g++ compiler, python development libraries ..etc) used by Python to compile the app dependencies in your environment.
  • (Optional) Docker - a popular virtualization software

✨ Start the app in Docker​

👉 Step 1 - Access the product page and download the ZIP (requires a purchase)

$ # Get the code
$ unzip flask-datta-able-enh.zip
$ cd flask-datta-able-enh

👉 Step 2 - Start the APP in Docker

$ docker-compose up --build

Visit http://localhost:5085 in your browser. The app should be up & running

✨ Manual Build​

Download the code - access the product page and download the ZIP (requires a purchase)

$ # Get the code
$ unzip flask-datta-able-enh.zip
$ cd flask-datta-able-enh

👉 Set Up for Unix, MacOS​

Install modules via VENV

$ virtualenv env
$ source env/bin/activate
$ pip3 install -r requirements.txt

Set Up Flask Environment

$ export FLASK_APP=run.py
$ export FLASK_ENV=development

Set Up Database

# Init migration folder
$ flask db init # to be executed only once
$ flask db migrate # Generate migration SQL
$ flask db upgrade # Apply changes

Create super admin (the superuser account)

$ flask create_admin

Start the app

$ flask run

At this point, the app runs at http://127.0.0.1:5000/.

👉 Set Up for Windows​

Install modules via VENV (windows)

$ virtualenv env
$ .\env\Scripts\activate
$ pip3 install -r requirements.txt

Set Up Flask Environment

$ # CMD
$ set FLASK_APP=run.py
$ set FLASK_ENV=development
$
$ # Powershell
$ $env:FLASK_APP = ".\run.py"
$ $env:FLASK_ENV = "development"

Set Up Database

# Init migration folder
$ flask db init # to be executed only once
$ flask db migrate # Generate migration SQL
$ flask db upgrade # Apply changes

Create super admin (the superuser account)

$ flask create_admin

Start the app

$ flask run

At this point, the app runs at http://127.0.0.1:5000/.

APP Configuration via .env file​

Rename env.sample to .env and edit the variables:

Flask environment variables (used in development)​

  • FLASK_APP=run.py - run.py is the entry point in the project
  • FLASK_ENV=development

DEBUG Flag​

  • DEBUG: if True the SQLite persistence is used.
    • For production use False = this will switch to MySql persistence

ASSETS_ROOT used in assets management​

  • default value: /static/assets

FTP Settings​

This section, once defined, the user is able to change their profile photo. To test the connection, run flask test_ftp.

  • FTP_SERVER - ftp server address
  • FTP_USER - ftp user
  • FTP_PASSWORD - ftp password
  • FTP_WWW_ROOT - the public address used for uploaded assets

MySql Credentials​

This section is used when DEBUG is set to False (production mode)

  • DB_ENGINE, default value = mysql
  • DB_NAME, default value = appseed_db
  • DB_HOST, default value = localhost
  • DB_PORT, default value = 3306
  • DB_USERNAME, default value = appseed_db_usr
  • DB_PASS, default value = pass

Social Authentication via Github​

When credentials are defined, the app enables the LOGIN with Github button on Sign IN page.

  • GITHUB_ID=YOUR_GITHUB_ID
  • GITHUB_SECRET=YOUR_GITHUB_SECRET

Social Authentication via Twitter​

When credentials are defined, the app enables the LOGIN with Twitter button on Sign IN page.

  • TWITTER_ID=YOUR_GITHUB_ID
  • TWITTER_SECRET=YOUR_GITHUB_SECRET

✨ Application Bootstrap Flow​

The entry point of the project is the run.py file where the project configuration is bundled. The most important files that make the project functional are listed below:

  • run.py is the application entry point

    • read the Debug flag from .env

    • import the db object from apps packag

      e

    • import the create_app helper from `apps

      `

  • Flask application is built by create_app

    • If Debug=True - SQLite is used (development mode)
    • If Debug=False - SQLite is used (production mode)

  • Configuration

    • is defined in apps/config.py

✨ API via Flask-RestX​

API stands for Application Programming Interface and it is used by various programs to communicate. When browsing the internet, you are using an API. The API takes your request, sends it to the service provider, fetches the response, and sends it back to you.

Flask-RestX Intro​

Flask-RestX is an extension for Flask that allows us to build REST APIs faster. It has a collection of tools and decorators to help you describe and expose your API to the Swagger documentation.

The Swagger UI: http://localhost:5000/api/

Exposed models​

Products API

  • Definition: apps/models/: Product Class
  • Definition: id, name, information, description, price, currency
  • URI: http://localhost:5000/api/products/

Sales API

  • Definition: apps/models/: Sale Class
  • Definition: id, product, state, value, fee, currency, client, payment_type, purchase_date
  • URI: http://localhost:5000/api/products/

How to use the API​

The API is secured via an api_token generated during the registration process. The value is saved in the Users table. Once the user is authenticated, the API_TOKEN is listed on the dashboard.

  • GET requests can be used without the API_TOKEN
  • All mutating requests (PUT, DELETE, POST) requires the presence of the API_TOKEN in the header: Authorization field

Swagger UI

  • This visual tool is exposed at address http://localhost:5000/api/ and provides a fast access to the API

POSTMAN (3rd party tools)

  • Import the sample POSTMAN collection (saved on Github)
  • Replace the Authorization value with the API KEY listed on your dashboard
  • Query the PRODUCTS API
    • create, update and delete products
  • Query the SALES API
    • create, update and delete sales

\

✨ OAuth for Github and Twitter​

Open Authorization (OAuth) is an authorization framework designed to allow third-party applications to access a user's data or resource. With this protocol, you can sign up and log in via social accounts like GitHub and Twitter.

Flask-Dance​

Flask-Dance is an extension that allows developers to create Flask-based applications with the option of authenticating via the OAuth protocol.

OAuth via Github​

To authenticate via GitHub, we must define our credentials in the .env file.

  • GITHUB_ID=YOUR_GITHUB_ID
  • GITHUB_SECRET=YOUR_GITHUB_SECRET

To get the credentials above;

  1. Go to your GitHub account, navigate to Settings -> Developer Settings -> OAuth Apps
  2. Edit the OAuth such that
  • Call back URL: https://localhost:5000/login/github/authorized
  • Homepage URL: https://localhost:5000

Once done, generate a secret key, and copy & paste it into the .env file. Do the same for the Client Id generated by GitHub.

Run the app using HTTPS

$ flask run --cert=adhoc

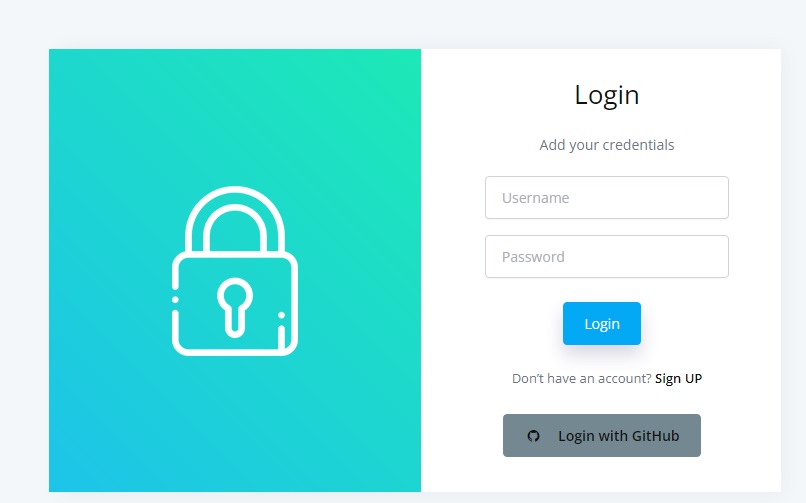

Oauth via GitHUB

You can log in via the GitHub button.

OAuth via Twitter​

To authenticate via Twitter, we must define our credentials in the .env file.

  • Sign IN to Twitter
  • Go to the Developer Section
  • Create a new APP
  • Edit settings
  • Check OAuth version: v1 or v2 (recommended)
  • Callback URL: https://localhost:5000/login/twitter/authorized

Edit the .env file and run the app using HTTPS

  • TWITTER_ID=YOUR_TWITTER_ID
  • TWITTER_SECRET=YOUR_TWITTER_SECRET
$ flask run --cert=adhoc

You can log in via the Twitter button.

👉 Static Assets​

The static assets used by the project (JS, CSS, images) are saved inside the apps/static/assets folder. This path can be customized with ease via ASSETS_ROOT variable saved in the .env file.

How it works

  • .env defines the ASSETS_ROOT variable
  • apps/config.py read the value of ASSETS_ROOT and defaults to /static/assets if not found:
# content of apps/config.py (truncated content)

ASSETS_ROOT = os.getenv('ASSETS_ROOT', '/static/assets')
  • All pages and components use the config.ASSETS_ROOT variable. Here is a sample extracted from templates/layouts/base.html:
<head>
    <!-- Source Code -->
    <link rel="stylesheet" href="{{ config.ASSETS_ROOT }}/css/style.css" />

    <!-- RUNTIME -->
    <link rel="stylesheet" href="/static/assets/css/style.css" />
</head>

At runtime, the href property is resolved to /static/assets/css/style.css based on the value saved in the .env file:

# No Slash at the end
ASSETS_ROOT=/static/assets

🚀 Where to go from here​
